100% Passing Guarantee - Brilliant 300-815 Exam Questions PDF [Nov-2021]
300-815 Dumps 2021 - NewCisco 300-815 Exam Questions
Overview of the Exam Outline
The content of 300-815 exam contains six domains, and questions taken from them will pop up during the test. However, they won't appear evenly, and some sections take up a larger portion of the syllabus than others. Take a look at them below:
- Cisco Unified CM Call Control Features
This module takes about 20% of the syllabus. The subdomains include troubleshooting of the Call Admission Control and configuring ILS, URI synchronization, GDPR, hunt groups, call queuing, time of day routing, and supplementary roles.
- Call Control and Dial Planning
This domain has weight of about 25%. You are to have a general idea of troubleshooting and setting up the globalized call routing elements in CU-CM, such as the patterns for route, translation, transformation, and others.
- CME/SRST Gateway Technologies
About 10% of the questions come from this domain. It assesses one’s knowledge of how to configure CU-CME for SIP telephone registration and dial plans. Also, you should have a solid understanding of how to enforce toll fraud prevention and configure the advanced CU-CME features and SIP SRST gateway.
- Mobility
About 10% of the exam questions come from this topic. To tackle these items, you must understand the concepts of setting up CU-CM mobility, including unified mobility, extension mobility, and device mobility, and troubleshooting them.
- Cisco Unified Border Element
This section takes about 15% of the content. It covers the basic skills in handling the procedures involved setting up as well as troubleshooting the CU-BE dial plan components, including DTMF, voice translation rules and profiles, codec preference list, plus signaling and media bindings.
- Signaling and Media Protocols
This module covers about 20% of the test. It is required that you know how to troubleshoot the various elements of a SIP dialogue, including session timers, mid-call signaling, and more. You also need to equip yourself with a clear idea of troubleshooting certain protocol elements and media establishment.
How much Cisco 300-815: Implementing Cisco Advanced Call Control and Mobility Services Exam Cost
The cost of this examination is USD 300 although the pricing of Cisco tests vary by level and currency. The preparatory material comprising 300-815 dumps and 300-815 practice exams adds to the cost total of the examination. Examination coupons may also be used for discounts. Click here and choose your country to see what your test costs are.
NEW QUESTION 47

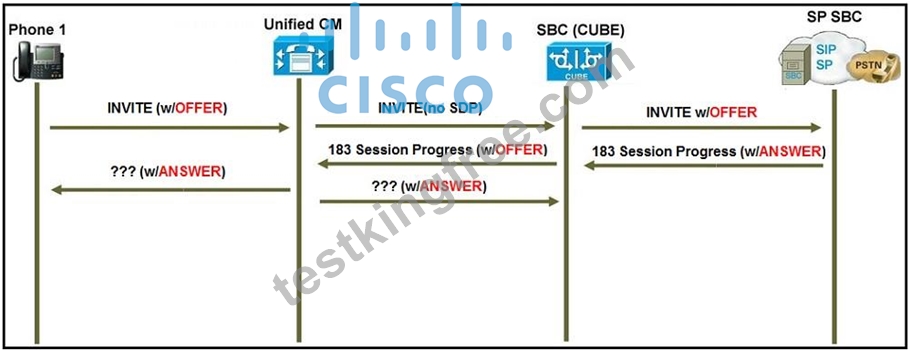

Refer to the exhibit.
A user reports that when they call a specific phone number, no one answers the call, but when they call from a mobile phone, the call is answered. The engineer troubleshooting the issue is expecting the far-end gateway to cut through audio on the 183 Session Progress SIP message. Which SIP Profile configuration element is necessary for the Cisco Unified Communications Manager to send acknowledgement of provisional responses?
- A. On the SIP Profile, the configuration parameter SIP Rel1XX Options must be set to Send PRACK for all
1xx Messages. - B. Allow Passthrough of Configured Line Device Caller Information must be enabled.
- C. Early Offer for G Clear Calls must be enabled.
- D. Accept Audio Codec Preferences in Received Offer must be set to On.
Answer: A
NEW QUESTION 48
Refer to the exhibit.
Users report that outbound PSTN calls from phones registered to Cisco Unified Communications Manager are not completing. The local service provider in North America has a requirement to receive calls in 10-digit format. The Cisco Unified CM sends the calls to the Cisco Unified Border Element router in a globalized E.164 format. There is an outbound dial peer on Cisco Unified Border Element configured to send the calls to the provider. The dial peer has a voice translation profile applied in the correct direction but an incorrect voice translation rule applied, which is shown in the exhibit. Which rule modified DNIS in the format that the provider is expecting?
- A. rule 1 /^\+1\([2-9]..[2-9]......$\)/ /\0/
- B. rule 1/^\+1\([2-9]..[2-9]......$\)/ /\1/
- C. rule 1 /^\([2-9]..[2-9]......$\)/ /\1/
- D. rule 1 /^/+\([^1].*\)/ /011\1/
Answer: B
NEW QUESTION 49

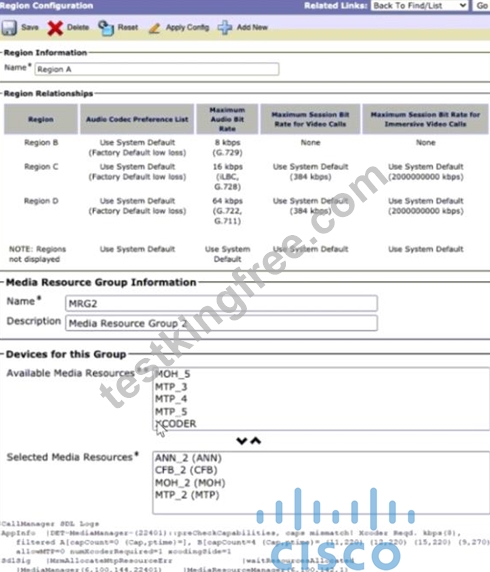

Refer to the exhibits.
Regions have been configured for all major branches based on the available circuit bandwidth. Some calls from Region A endpoints to Region B endpoints are failing to connect. How is this issue resolved?
- A. Add a media resource to transcode between available capabilities.
- B. Increase the number of available media termination points.
- C. Update the calling search space for affected endpoints to none.
- D. Update all regions to 8 kbps maximum audio bitrate.
Answer: A
NEW QUESTION 50
When configuring hunt groups, where do you add the individual directory numbers that will be part of the group?
- A. route group
- B. hunt pilot
- C. line group
- D. hunt list
Answer: C
NEW QUESTION 51
A user reports when they press the services key they do not receive a user ID and password prompt to assign the phone extension. Which action resolves the issue?
- A. Assign the extension as a mobile extension.
- B. Create the end user and associate it to the device profile.
- C. Create the default device profiles for all phone models that are used.
- D. Subscribe the phone to the Cisco Extension Mobility service.
Answer: D
NEW QUESTION 52
An administrator is configuring a cluster for ILS and wants to limit the amount of entities that Cisco Unified Communications Manager can write to the database for data that is learned through ILS. Which service parameter is used to adjust this limit?
- A. ILS Active Learned Object Upper Limit
- B. Global Data Service Parameter Limit
- C. Imported Dial Plan Replication Database Object Lower Limit
- D. ILS Max Number of Learned Objects in Database
Answer: D
Explanation:
Section: Cisco Unified CM Call Control Features
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/12_5_1SU1/systemConfig/ cucm_b_system-configuration-guide-1251su1/cucm_b_system-configuration-guide-
1251su1_restructured_chapter_0100011.html#CUCM_TK_I7C708C2_00
NEW QUESTION 53
When you troubleshoot H.323 call setup, which message informs you that the called party is being notified about the call?
- A. CONNECT
- B. RINGING
- C. ALERTING
- D. PROCEEDING
Answer: A
NEW QUESTION 54
An engineer must configure a secure SIP trunk with a remote provider, with a specific requirement to use port
5065 for inbound and otubound traffic. Which two items must be configured to complete this configuration?
(Choose two.)
- A. Destination Port in SIP Trunk Security Profile configuration
- B. Destination Port in SIP Information section of the SIP Trunk configuration
- C. Incoming Port in SIP Trunk Security Profile configuration
- D. Incoming Port in Security Information of the SIP Profile configuration.
- E. Incoming Port in SIP Information section of the SIP Trunk configuration.
Answer: B,C
Explanation:
Section: Call Control and Dial Planning
NEW QUESTION 55
If all patterns below are configured in Cisco Unified Communications Manager which would be used when dialing the pattern "123"?
- A. 1XX (urgent Priority Set)
- B. 12[2-5]
- C. 12X (urgent priority set)
- D. 12!
Answer: C
NEW QUESTION 56
Which action is correct with respect to toll fraud prevention configuration in the Cisco Unified Communications Manager Express?
- A. Configure the command no ip address trusted authenticate under "voice service voip".
- B. Enable Secondary Dial tone on Analog and Digital FXO Ports.
- C. Configure IP Address Trusted Authentication for Incoming VoIP Calls.
- D. Configure Direct Inward Dial for Incoming ISDN Calls with overlap dialing.
Answer: C
NEW QUESTION 57
Refer to the exhibit.
A Cisco Unified Border Element continues to send 180/183 with the required: 100rel header to Cisco UCM. and the call eventually disconnects How is the issue resolved?
- A. Disable "Send send-receive SDP in mid-call INVITE* on the SIP Profile Configuration Page in Cisco UCM.
- B. Enable 'SIP ReI1XX Options* and -Early Offer Support" on the SIP Profile Configuration Page in Cisco UCM.
- C. Enable *Early Offer support for voice and video calls" on the SIP Profile Configuration Page in Cisco UCM.
- D. Disable "SIP Rel1XX Options* and 'Early Offer Support* on the SIP Profile Configuration Page m Cisco UCM.
Answer: C
NEW QUESTION 58
Due to a shortage of physical interfaces on a device the administrator requires that a loopback for RTP is used. Which command is required when using a loopback interface for RTP?
- A. voice-class sip early-offer forced.
- B. voice-class sip bind media source-interface Loopback0
- C. voice-class sip bind control source-interface Loopback0
- D. voice-class sip resources priority mode passthrough
Answer: B
NEW QUESTION 59
An administrator sees the voice register pool 1 command in a Cisco UCME configuration. Which configuration is occurring in this section?
- A. configuration for a pool of SIP phones (similar to device pool on Cisco UCM)
- B. configuration for a single SIP phone
- C. configuration items common for all SIP phones
- D. configuration for SIP registrar service
Answer: B
NEW QUESTION 60
Which two descriptions of the Standard Local Route Group deployment are true? (Choose two.)
- A. can be associated only under the route list
- B. chooses the route group that is configured under the device pool of the calling-party device
- C. can be associated under the route group
- D. chooses the route group that is configured under the device pool of the called-party device
- E. can be assigned directly to the route pattern
Answer: A,D
NEW QUESTION 61
CollabCorp is a global company with two clusters, emea.collab corp and apac.collab.corp. URI dialing is implemented and working in each cluster. The company configured routing between clusters to make inter-cluster calls via URI. but this is not working as expected. Which two configuration elements should be checked to resolve this issue? (Choose two.)
- A. SIP route pattern
- B. calling search space and partition
- C. directory URI partition
- D. SIP trunk
- E. intercluster trunk
Answer: A,D
NEW QUESTION 62
Which section under the Real-Time Monitoring Tool allows for reviewing the call flow and signaling for a SIP call in real time?
- A. Voice/Video > Session Trace Log View > Open From Local Disk
- B. Voice/Video > Session Trace Log View > Real Time Data
- C. System > Tools > Trace and Log Central
- D. Analysis Manager > Inventory > Trace File Repositories
Answer: B
Explanation:
Reference:
https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-communications- manager-callmanager/213583-procedure-to-analyse-call-flow-of-sip-ca.html
NEW QUESTION 63
Where is the dtmf-relay command configured on Cisco Unified Border Element?
- A. in the VoIP dial peer
- B. in the VoIP or POTS dial peers
- C. in global SIP configuration
- D. in the voice-class VoIP configuration
Answer: A
Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/voice/cube/configuration/cube-book/dtmf- relay.html
NEW QUESTION 64
......
Certification Path
After earning the CCNP Collaboration designation, you may want to further develop your tech skills. This way, the most sensible move for you is to pursue another Cisco certificate of the expert level, which is the CCIE Collaboration validation. Having such a certification will equip you with the relevant skills to manage high-level collaboration solutions within an enterprise.
