NEW QUESTION 193
When you are troubleshooting an ACL issue on a router, which command would you use to verify which interfaces are affected by the ACL?
- A. show access-list
- B. list ip interface
- C. show ip access-list
- D. show interface
- E. show ip interface
Answer: E
NEW QUESTION 194
Two switches are connected and using Cisco Dynamic Trunking Protocol. SW1 is set to Dynamic Auto and SW2 is set to Dynamic Desirable. What is the result of this configuration?
- A. The link becomes an access port.
- B. The link is in an error disabled state.
- C. The link is in a down state.
- D. The link becomes a trunk port.
Answer: D
Explanation:
Section: Network Access
Explanation
NEW QUESTION 195
Which device allows users to connect to the network using a single or double radio?
- A. firewall
- B. wireless controller
- C. access point
- D. switch
Answer: C
NEW QUESTION 196

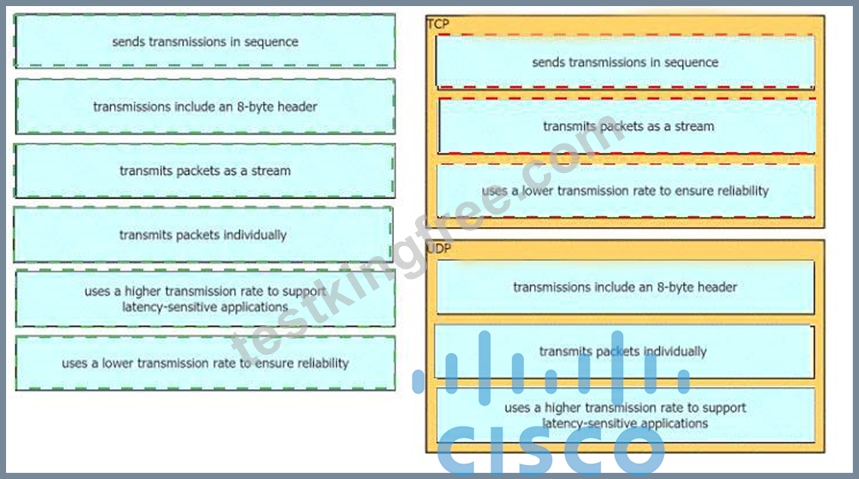

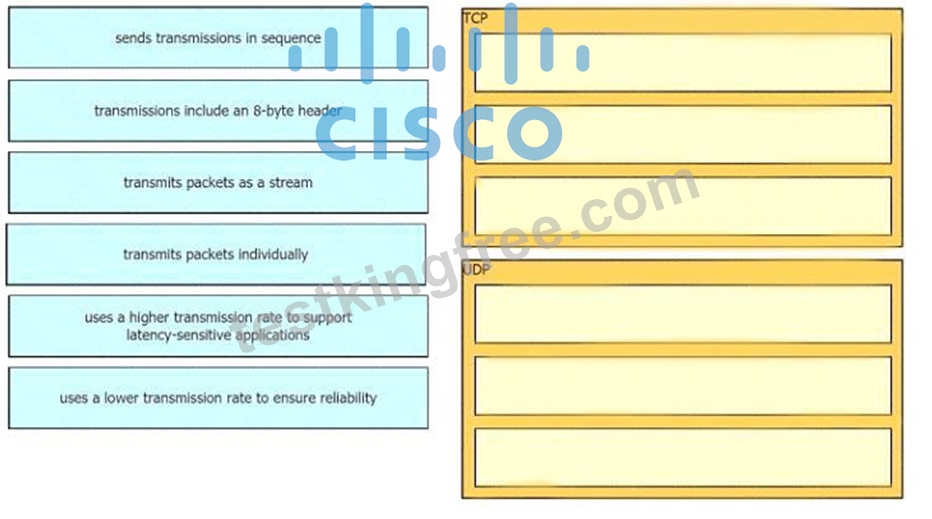

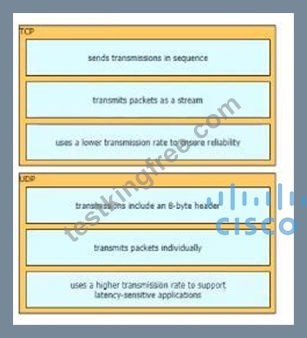

Drag the descriptions of IP protocol transmissions from the left onto the IP traffic types on the right.
Answer:
Explanation:
NEW QUESTION 197

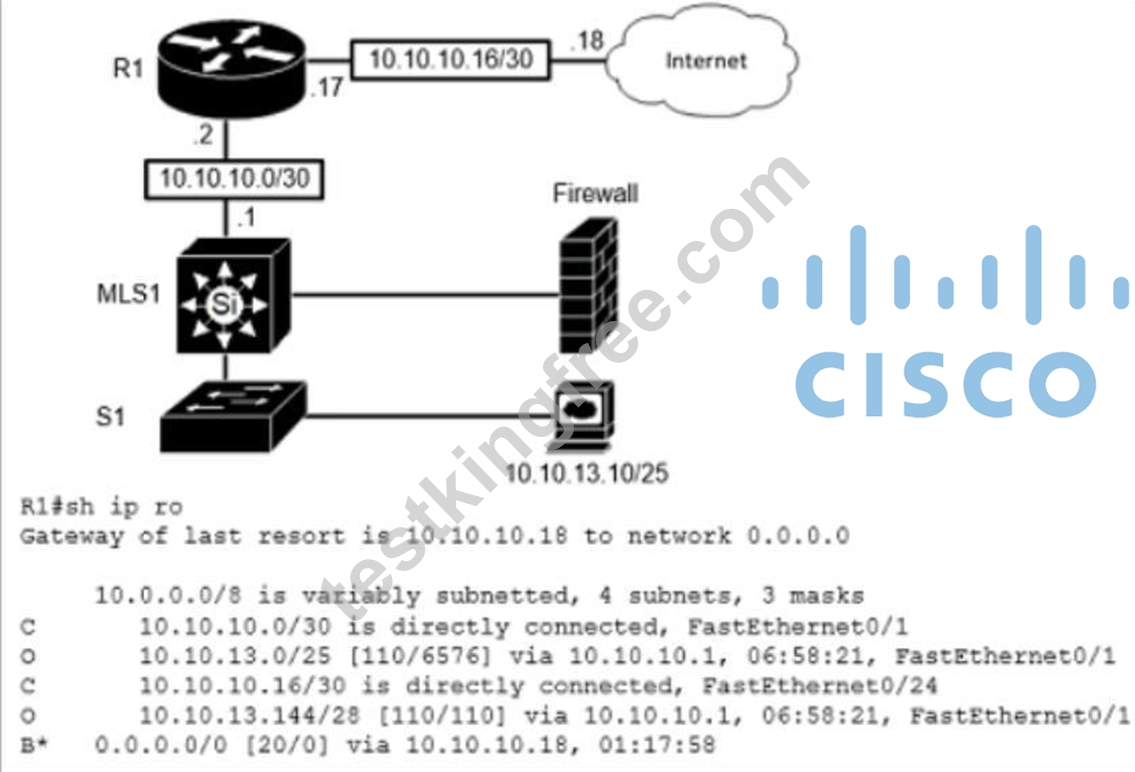

Refer to the exhibit.
Which route type is configured to reach the internet?
- A. default route
- B. host route
- C. floating static route
- D. network route
Answer: A
NEW QUESTION 198
The clients and OHCP server reside on different subnets. Which command must be used to forward requests and replies between clients on the 10.10.0.1/24 subnet and the DHCP server at 192.168.10.1?
- A. ip route 192.168.10.1
- B. ip dhcp address 192.168.10.1
- C. ip helper-address 192.168.10.1
- D. ip default-gateway 192.168.10.1
Answer: C
NEW QUESTION 199
Refer to the exhibit.
An access list is required to permit traffic from any host on interface G0/0 and deny traffic from interface G/0/1. Which access list must be applied?
- A. Option C
- B. Option D
- C. Option A
- D. Option B
Answer: C
NEW QUESTION 200
Drag and Drop Question
Drag and drop the REST principles from the left onto their definitions on the right.

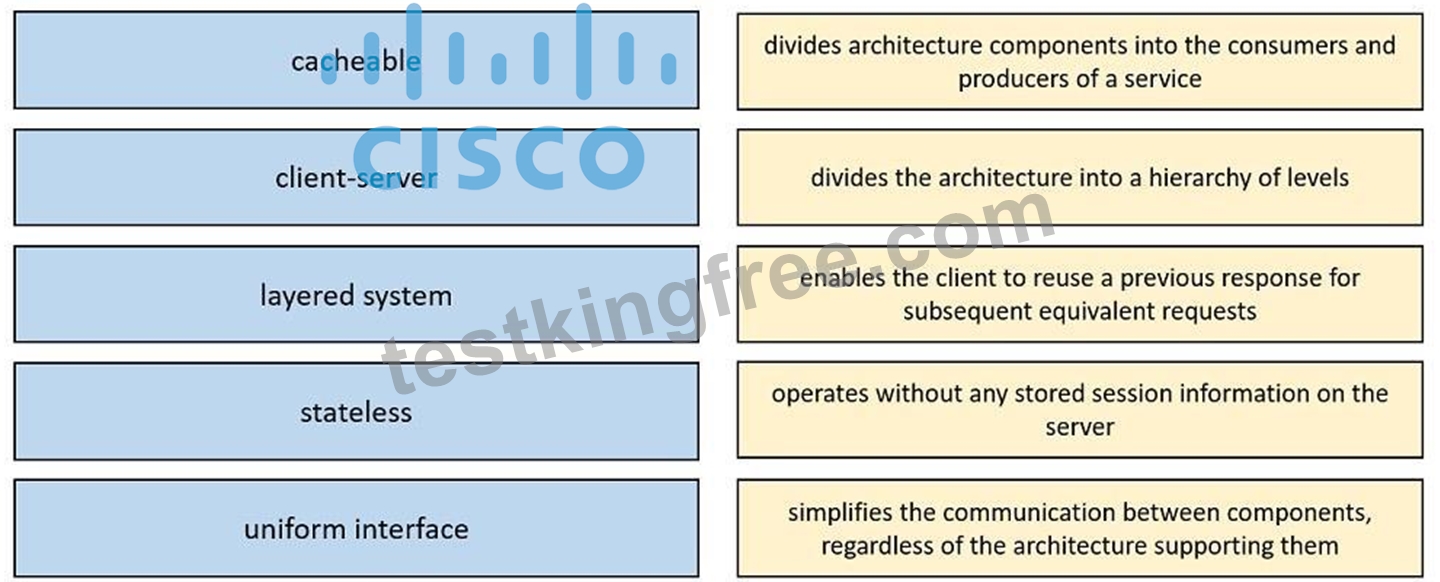

Answer:
Explanation:
NEW QUESTION 201

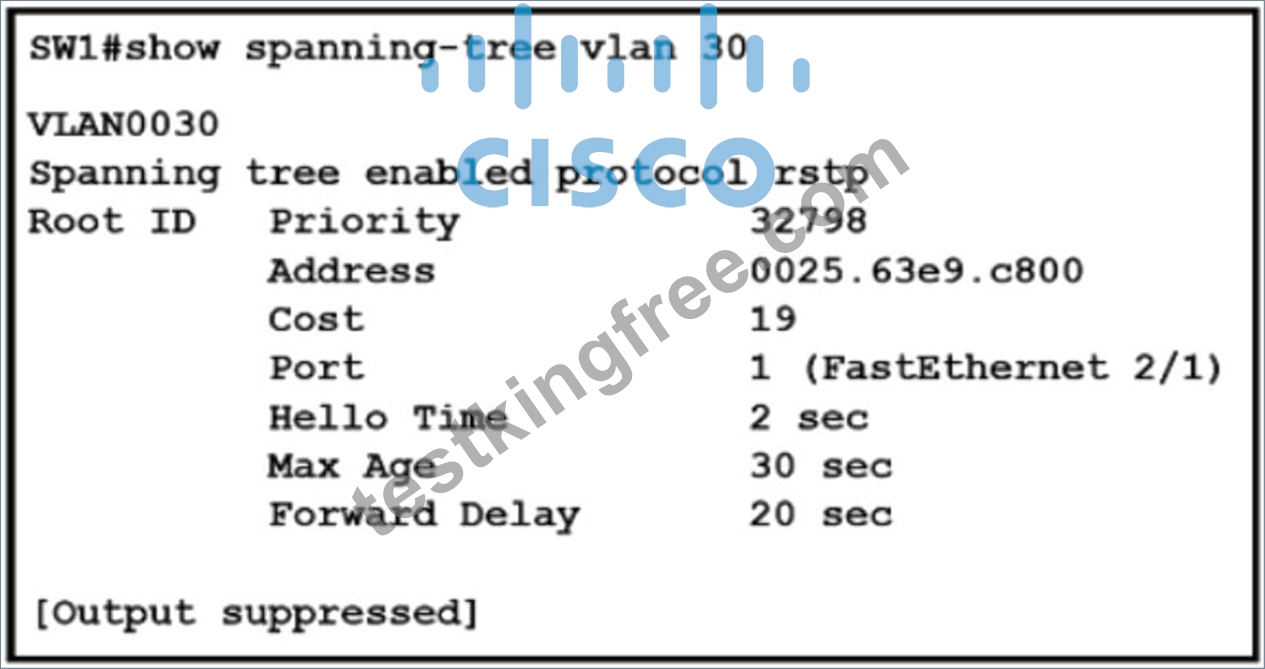

Refer to the exhibit.
What two conclusions should be made about this configuration? (Choose two )
- A. This is a root bridge
- B. The spanning-tree mode is PVST+
- C. The spanning-tree mode is Rapid PVST+
- D. The designated port is FastEthernet 2/1
- E. The root port is FastEthernet 2/1
Answer: D
NEW QUESTION 202
What are two descriptions of three-tier network topologies? (Choose two)
- A. The distribution layer runs Layer 2 and Layer 3 technologies
- B. The access layer manages routing between devices in different domains
- C. The core layer maintains wired connections for each host
- D. The core and distribution layers perform the same functions
- E. The network core is designed to maintain continuous connectivity when devices fail.
Answer: A,E
NEW QUESTION 203

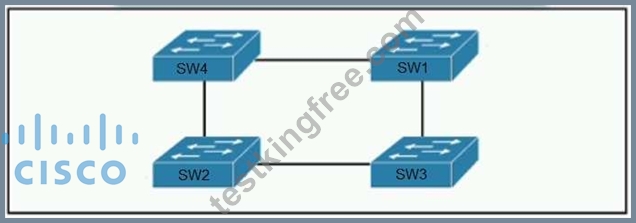

Refer to the exhibit. Which switch in this configuration will be elected as the root bridge?
SW1: 0C:E0:38:41:86:07
SW2: 0C:0E:15:22:05:97
SW3: 0C:0E:15:1A:3C:9D
SW4: 0C:E0:18:A1:B3:19
- A. SW4
- B. SW1
- C. SW2
- D. SW3
Answer: D
Explanation:
Section: Network Access
NEW QUESTION 204
Which protocol does an IPv4 host use to obtain a dynamically assigned IP address?
- A. DHCP
- B. CDP
- C. ARP
- D. DNS
Answer: A
Explanation:
Explanation
https://www.geeksforgeeks.org/how-dhcp-server-dynamically-assigns-ip-address-to-a-host/#:~:text=DHCP%20
NEW QUESTION 205
What is a function of Wireless LAN Controller?
- A. use SSIDs to distinguish between wireless clients.
- B. register with a single access point that controls traffic between wired and wireless endpoints.
- C. monitor activity on wireless and wired LANs
- D. send LWAPP packets to access points.
Answer: D
Explanation:
Explanation

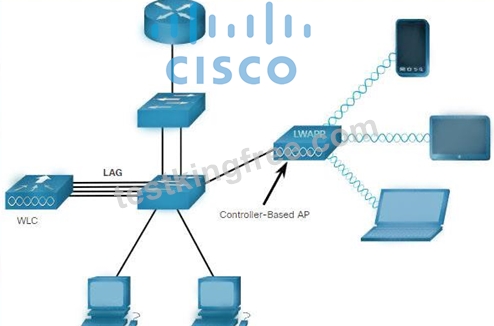

Lightweight APs (LAPs) is devices require no initial configuration. LAPs use the Lightweight Access Point Protocol (LWAPP) to communicate with a WLAN controller (WLC), as shown in the below figure.
Controller-based APs are useful in situations where many APs are required in the network. As more APs are added, each AP is automatically configured and managed by the WLC.
NEW QUESTION 206
Refer to the exhibit.
An engineer is bringing up a new circuit to the MPLS provider on the Gi0/1 interface of Router1 The new circuit uses eBGP and teams the route to VLAN25 from the BGP path What s the expected behavior for the traffic flow for route 10.10.13.0/25?
- A. Traffic to 10.10.13.0/25 is asymmeteical
- B. Route 10.10.13.0/25 learned via the GiO/0 interface remains in the routing table
- C. Route 10.10.13.0/25 is updated in the routing table as being learned from interface Gi0/1.
- D. Traffic to 10.10.13.0.25 is load balanced out of multiple interfaces
Answer: B
NEW QUESTION 207
Which cloud service model does the engineer recommend?
- A. platform-as-a-service
- B. business process as service to support different types of service
- C. software-as-a-service
- D. infrastructure-as-a-service
Answer: C
NEW QUESTION 208

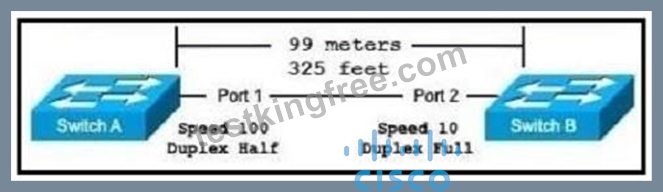

Refer to the exhibit. The switches are connected via a Cat5 Ethernet cable that is tested successfully. The interfaces are configured as access ports and are both in a down status. What is the cause of the issue?
- A. The distance between the two switches is not supported by Cat5
- B. The portfast command is missing from the configuration
- C. The speed settings on the switches are mismatched
- D. The switches are configured with incompatible duplex settings
Answer: C
NEW QUESTION 209

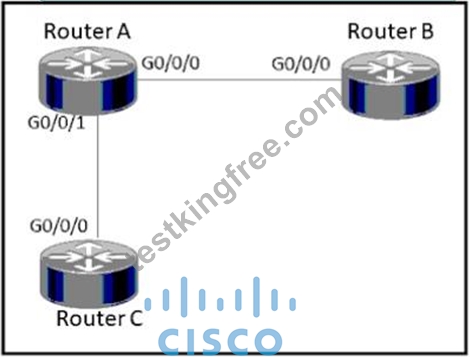

Refer to the exhibit.
How must router A be configured so that it only sends Cisco Discovery Protocol Information to router C?
- A. Option C
- B. Option D
- C. Option B
- D. Option A
Answer: B
NEW QUESTION 210

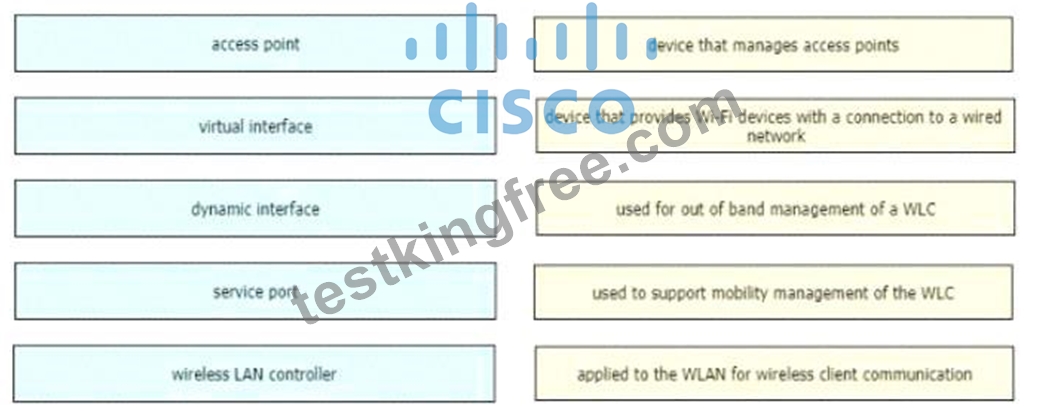

Drag and drop the WLAN components from the left onto the correct descriptions on the right.

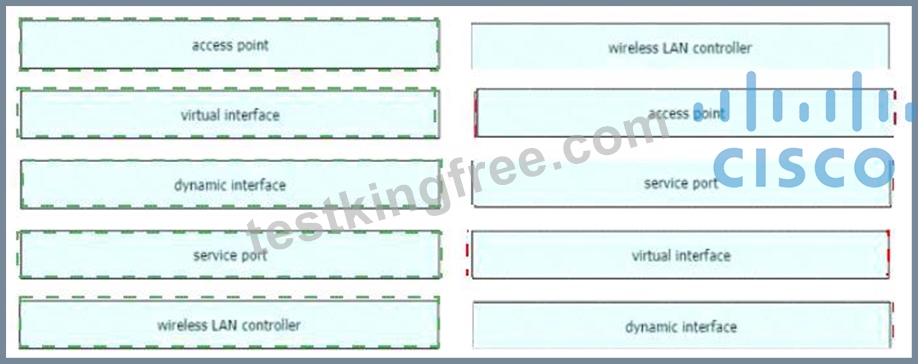

Answer:
Explanation:
NEW QUESTION 211

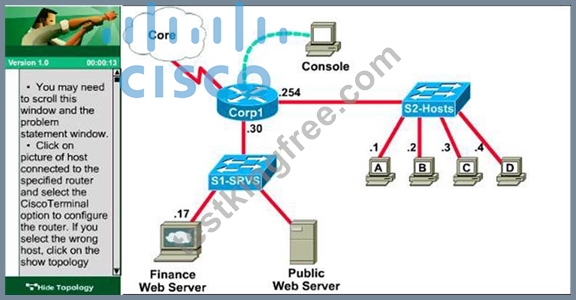

ACL-3
A corporation wants to add security to its network.
The requirements are:
> Host C shouldbe able touse a web browser (HTTP) to access the Finance Web Server.
> Other types of access from host Cto the Finance Web Server should be blocked.
> All access from hostsin the Core or local LAN to the Finance Web Server should be blocked.
> All hosts in the Core and on local LAN should be to access the Public Web Server.
You have been tasked to create and apply a numberd access list to a single outbound interface. They can contain no more than three statements that meets these requirements.
Access to the router CLI can be gained by clicking on the appropriate host.
All passwords have been temporarily set to "cisco".
The Core connection uses an IP address of 198.18.196.65, Corp1 Router's port S's IP need to be showed if it is right when taking the test; if it is not right, IP needs to be corrected.
The computers in the Hosts LAN have been assigned addresses of 192.168.33.1 - 192.168.33.254 Host A 192.168.33.1 Host B192.168.33.2 Host C192.168.33.3 Host D 192.168.33.4 The servers in the Server LAN have been assigned addresses of 172.22.242.17 -- 172.22.242.30 The Finance Web Server is assigned an IP address of 172.22.242.23.
Answer:
Explanation:
Corp1 router's port S's IP needs to be showed if it is right when taking the test; if it is not right, which needs to be modified; modify the IP command Corp1>enable Corp1 # configure terminal Corp1 (config) #int s1 / 0 (the specific port number, you need to show run by yourself) Corp1 (config-if) #ip add 198.18.196.65 255.255.255.252 (ip is modified to the one in the item, the mask is used the one which using show run to get the original error IP's mask) Corp1 (config-if) #end Here, you cannot need to delete the wrong IP address, you can directly enter the new IP to cover the old IP, and finally do not forget to save. Corp1 # show running-config
Make sure that the interface connecting the server is F0/1 Corp1#configure terminal Corp1(config)#access-list 100 permit tcp host192.168.33.3 host 172.22.242.23 eq 80 Corp1(config)#access-list 100 deny ip any host 172.22.242.23 Corp1(config)#access-list 100 permit ip any any Corp1(config)#interface fa0/1 Corp1(config-if)#ip access-group 100 out Corp1(config-if)#end Corp1#copy running-config startup-config
NEW QUESTION 212
Drag and Drop Question

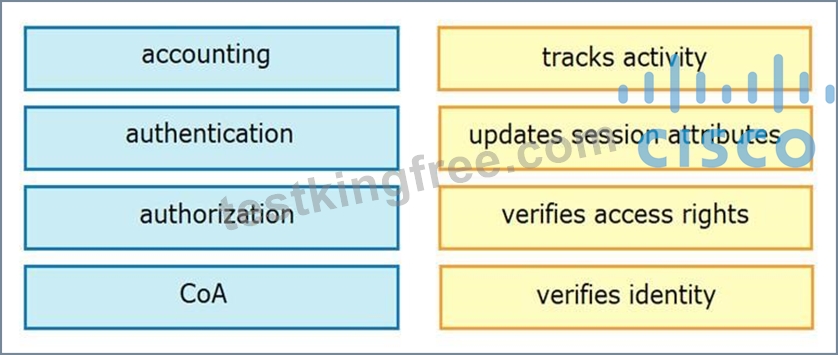

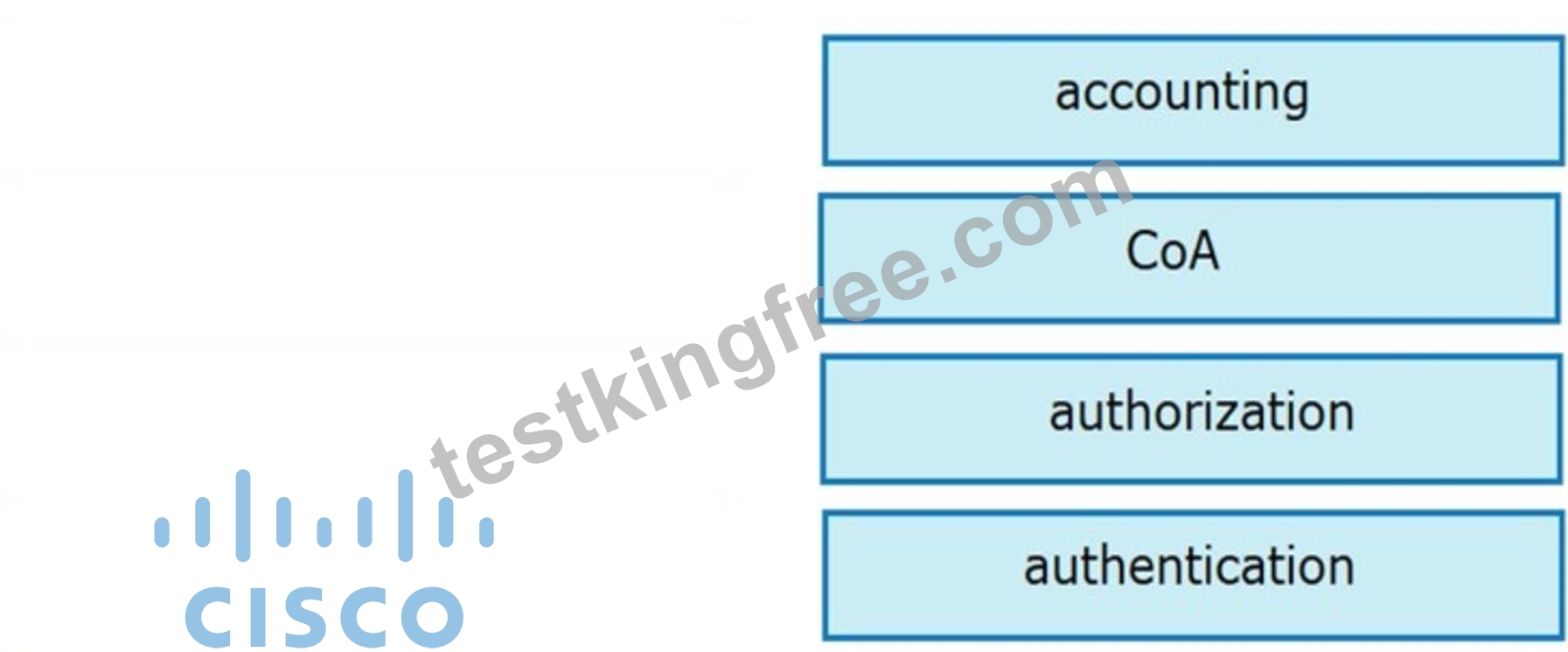

Drag and drop the AAA terms from the left onto the descriptions on the right.
Answer:
Explanation:
NEW QUESTION 213
......
